23.Submission

23.1Definition

Figure 23-1.Server-Client Communication

Designed for the data communication with the server, the Submission is implemented in AJAX. The submission has following features.

Features

The data to receive from or send to the server must be defined as a DataCollection.

Only sends data without refreshing the page.

Supports both synchronous and asynchronous communication.

Functions to handle events before/after data communication can be defined.

Submissions can be dynamically created by scripts.

Properties other than the ID can be dynamically changed.

Recommendations

Create a different submission for each purpose (for easier maintenance.)

A common module is recommended for the data communication for the UI display.

Typical Order:

(1) Write page UIs.

(2) Create a DataCollection to define the data forms to exchange between the browser and the server.

(3) Bind page UIs with the DataCollection.

(4) Create a submission.

(5) Define an event to execute the submission.

23.2Submission vs. AJAX

The developer can define a submission or directly developer a AJAX communication module for the data communication.

By writing an AJAX communication module, the developer can call the server without creating a submission.

The following compares the submission and AJAX.

Table 23-1.Submission vs. AJAX
	Submission	AJAX
Features	To be defined for each web page. Follows the rules defined by the WebSquare5.	Can be written as a common module and applied commonly. Supports flexible use to meet the developer’s varying demand.
Strength/Weakness	Good readability of the code High efficiency in maintenance	Low readability of the code Low efficiency in maintenance
Application	Data communication to execute the main functions of the web page (Good readability of the code and efficient maintenance)	Repeated data communication

var reqstr = '<request>'
    + '<data value="efg">ABCD</data>'
    + '</request>';

$p.ajax({
      action : "http://localhost:8090/developGuide/getAjax.jsp",
      mode : "asynchronous",
      mediatype : "application/xml",
      method : "post",
      requestData : reqstr,
      type : "xml",
      beforeAjax : function(e) {
        WebSquare.logger.printLog("beforeAjax call");
      },
      success : function(e) {
        alert(e.responseText);
      },
      error : function(e) {
        WebSquare.logger.printLog("error call");
      },
      requestHeader : {
        sendData1 : "123",
        sendData2 : "456"
      }
    });

Table 23-2.ajax options
Options	Description
`options.action`	AJAX requesting address
`options.mode`	asynchronous(default)/synchronous
`options.mediatype`	mediatype
`options.method`	get/post/put/delete
`options.requestData`	Request string (text data)
`options.timeout`	AJAX request timeout In case no response arrives within the timeout, the error callback function will be executed.
`options.type`	xml or json. In case of xml, an xml object is set in the responseBody property of the success callback function. In case of JSON, a JavaScript object is set. In other cases, the text format is set.
`options.beforeAjax`	Executed before the request. When this function returns false, no AJAX request will be made.
`options.success`	The callback function executed upon a success of the request
`options.error`	The callback function executed upon a failure of the request
`options.requestHeader`	Object setting a value in the request head

23.3Submission & DataCollection

Table 23-3.Comparison
DataCollection	Submission
Data model of the WebSquare5 designed to more easily display large-volume data.	Defines the data communication with the server through the DataCollection.

In other words, in case data communication between the web browser and the server is necessary, write a DataCollection and define a submission. (This part of the document mainly describes the submission. For more information about the DataCollection, see 16. DataCollection part.)

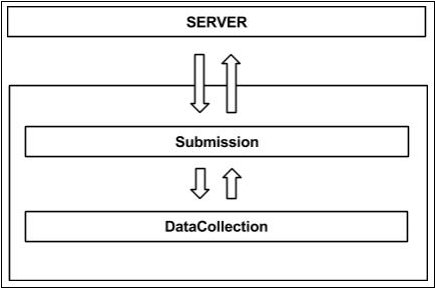

Figure 23-2.Submission Vs. DataCollection

23.4Creating Submissions

23.4.1Creating in Studio

Select Outline – Head view.
Right-click Submission, and select Add.

Figure 23-3.Creating Submissions

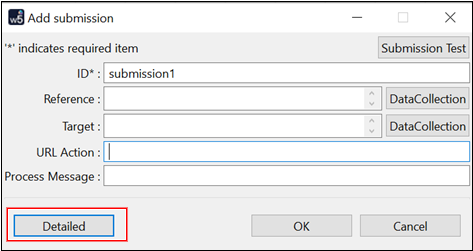

When the following window shows up, enter corresponding information.

Table 23-4.Submission Properties
Item	Description
ID	Submission ID.
Reference	Format of the data to send to the server. (Select after clicking DataCollection button. Note, however, that the DataCollection must be predefined.)
Target	Format of the data to receive from the server. (Select after clicking DataCollection button. Note, however, that the DataCollection must be predefined.)
URL Action	URL of the server from which the data is to be received.
Process Message	Message to be displayed during execution of the submission.

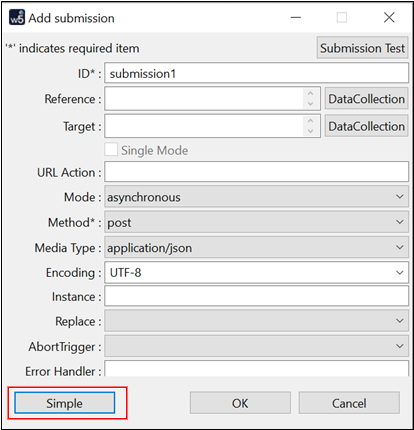

By clicking Detailed button, view the details of the submission. To return to the previous view, click Simple button in the lower part.

YouTube Video (https://youtu.be/CcHlqfcPrIM?t=122)

Creating Submission on Studio

Sample File

Download from the Internet or
View in WEBSQUARE_DEV_PACK(/$p/Submission/$p_executeSubmission_Submission/)

Figure 23-4.YouTube Video (https://youtu.be/CcCOLLL5yMw)

23.4.2Dynamic Creation

The developer can also dynamically add a submission using APIs as shown below.

$p.createSubmission ( temOpt );

Create a submission object as in the following example. The properties are same as those defined in the Submission Creation window.

var tmpOpt = {
    id : "sub_getUserXmlMapData"
    , ref : "data:xml,dc_reqCode"
    , target : "data:xml,dc_resUserMapData"
    , action : "/data/sampleData_xml_dc_map.data"
    , mediatype : "text/plain"
    , submitDoneHandler : function(e){
        alert(e.responseText);
    }
};

// Create a submission.
$p.createSubmission( tmpOpt );

A submission alone is to enough to enable data exchanges.

23.4.3Async Mode Recommended (Sync Mode Warned)

It is recommended to execute the submission in the asynchronous mode.

Figure 23-5.Async Mode Recommended

If config.xml file has <warningSyn> setting as "true", a warning message will be generated for a synchronous-mode submission.

Code 23-1.Example

<WebSquare>
    <notRecommended>
        <warningSync value="true"/>
    </notRecommended>
</WebSquare>

Video Guide

Warning for synchronous-mode submissions (Asynchronous mode is recommended for submissions) - config.xml

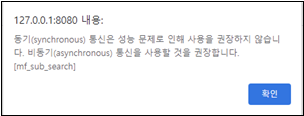

Figure 23-6.Warning Message for Sync-mode Submission in Studio

Figure 23-7.Warning Message for Sync-mode Submission in Browser

23.5Adding Events

Go to Outline – Head view, right-click Submission, and select Event.

Figure 23-8.Submission Events

Table 23-5.Submission Event
Event	Description
Submit	Pre-processing upon a Submission Request
Submit-done	Submission Execution
Submit-error	Actions upon a submission error

23.5.1submitdone(e)

xforms-submit-done : Runs only when the Response Status code is normal.

Table 23-6.xforms-submit-done
e object key	Description
e.id	Returns the ID of the submission object.
e.resourceUri	Returns the communication URI.
e.responseHeaders	Returns the contents of the Response Headers.
e.responseStatusCode	Returns the Response Status Code.
e.responseReasonPhrase	Returns the Response Status Text.
e.responseBody	Returns an XML object for which the response data is parsed in XML. When the Response Content-Type is JSON, the JSON object will be parsed in XML.
e.responseText	Returns the response data in string format.
e.responseHeadersJSON	Returns the response headers in JSON.
e.responseJSON	Converts the responseText into JSON. The conversion will be made only when the content-type of the response header contains "json" string.

23.5.2submiterror(e)

xforms-submit-error : Acts only when the Response Status code is an error (lower than 200 or higher than 300).

Table 23-7.xforms-submit-error
e object key	Description
e.id	Returns the ID of the submission object.
e.errorType	Returns a fixed value as a target-error.
e.resourceUri	Returns the communication URI.
e.responseHeaders	Returns the contents of the Response Headers.
e.responseStatusCode	Returns the Response Status Code.
e.responseReasonPhrase	Returns the Response Status Text.
e.requestBody	Returns the request data in string format.
e.responseText	Returns the response data in string format.
e.responseHeadersJSON	Returns the response headers in JSON.

23.6Execution of Submission

In order to exchange data, the created submission must be executed.

Execute a submission using $p.executeSubmission API as shown below.

Code 23-2.Example

$p.executeSubmission ( submission id );

Video Guide

Executing a submission ($p.executeSubmission("submissionID");)

Video Guide

Binding DataMap & Executing Submission

Video Guide

Loading data in two or more DataCollection objects through a single submission

Video Guide

Executing a submission ($p.executeSubmission("submissionID");) - GridView

23.7Aborting a Submission

Add abortTrigger="true" setting to display the Cancel button on the page to abort the submission. Upon the end user’s clicking the Cancel button, the submission will be aborted.

In case the submission of the specified ID is currently running, the submission will be also aborted.

Code 23-3.Format

WebSquare.ModelUtil.abort( "SubmissionID" );

23.8Not Sending When Data Is Empty

In case dataType=“bigDecimal” or “number” column is empty without data, such columns may be excluded from data sending. Open config.xml file, and set <exceptEmptyValue> as shown below.

Code 23-4.Example

<WebSquare>
    <submission>
          <exceptEmptyValue value="true" />
    </submission
</WebSquare>

Sample File

Download from the Internet or
View in WEBSQUARE_DEV_PACK(/_config.xml/exceptEmptyValue_config_xml/)
